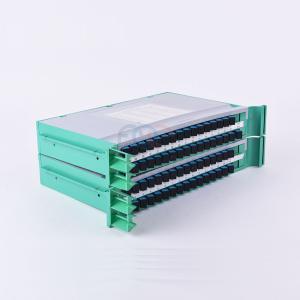

Pallet PLC Splitter, 19" Rack Mount 1x64 SC / UPC, Used for FTTH
Pallet type fiber optic PLC splitter has no open wire, the fiber optic cable is in a metal box with many high quality optical fiber adapters. According to the quantity of the adapters it mounted, It will be fixed to the fiber optic splice outdoor cabinet or optical distribution frame. The tray type PLC splitter can be inserted into the fiber optic tray directly. It is suitable for various types of optical fiber splitter, wave demultiplexer and other integrated installation and use.
FOC COMMUNICATION CO., LTD provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 1U rack mount type PLC splitters.
Features
Configuration Pallet Type 1x64
Fiber Type Single Mode G.657A1
Connector Type SC/APC
Low Insertion loss
Low PDL
High Return Loss
Uniform Power Splitting
Compact Design
Wide Operating Wavelength
Wide Operating Temperature
Excellent Environmental & Mechanical Stability
Qualified Under Telcordia GR-1221 and GR-1209
Applications
Telecommunications
Local area network
Fiber to the home
Video transmission
Fiber optic sensing
Testing instruments
CATV
Optical Specifications
| Parameter | Unit | Specification (P Grade) |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Operation Wavelength | nm | 1260～1650 |
| Insertion Loss (Max.) | dB | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Uniformity (Max.) | dB | 0.5 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 |
| Directivity | dB | ≥50 |
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Parameter | Unit | Specification (P Grade) |
| Channel Number | | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Operation Wavelength | nm | 1260～1650 |
| Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 |
| Directivity | dB | ≥50 |
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
Note: All the data above does not include connectors.
Ordering Information
| PLC | | | | | | |
| | Port | Fiber Type | Input | Output | Pigtail Length | Connector |
|
PLC | 0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64 | 1=G652D, 2=G657A | L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter | L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter | 05-20=0.5--2.0m, 0=Adapter, X=Others | FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
