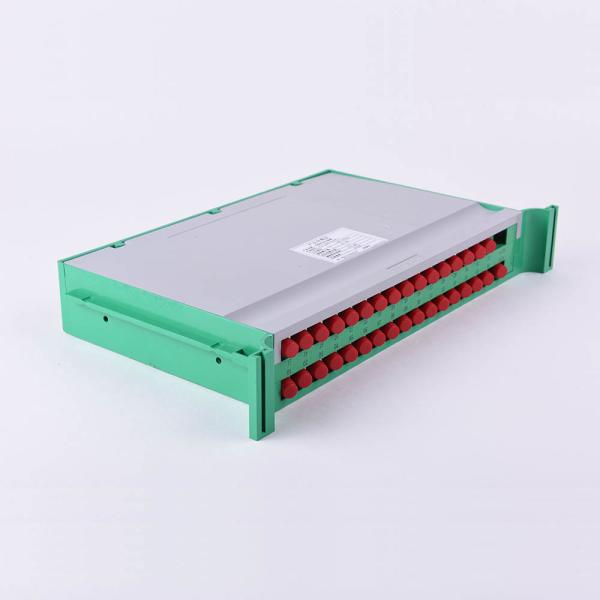

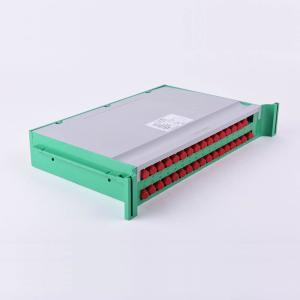

19-inch Tray Type Fiber Optic PLC Splitter, 1x32 FC / UPC Deployed in ODF
Tray type PLC splitter also uses a space saving package form factor for better cable management. However, it uses a international 19-inch design which can be deployed in ODF for compact cable management and signal distribution. With this design, the ports on tray type splitter are clearly marked, which can reduce the faults caused by wrong connections.
The plastic pallet, can install a variety of spectral ratio PLC or FBT light shunt, performance parameter please refer to the cassette light shunt. At the same time can also choose the light mouth left oblique out or right Angle out two kinds, in order to meet different needs. Cooperate with adjustable slide, can be installed in all sorts of ODF or cable transfer box.
FOC COMMUNICATION CO., LTD provides a various of 1xN and 2xN PLC 1U rack mount type splitters, including 1x2, 1x4, 1x8, 1x16,1x32,1x64 1U rack mount type PLC splitter and 2x2, 2x4, 2x8, 2x16, 2x32, 2x64 1U rack mount type PLC splitters.
Features
Compact design
Low insertion loss and low PDL
High reliability
High channel counts
Wide wavelength range
Large operating and temperature range
Customized packaging and configuration
Full Telcordia GR1209/1221 qualifications
Applications
Telecommunications
Local area network
Fiber to the home
Video transmission
Fiber optic sensing
Testing instruments
CATV
Optical Specifications
| Parameter | Unit | Specification (P Grade) |
| Channel Number | | 1X2 | 1X4 | 1X8 | 1X16 | 1X32 | 1X64 |
| Operation Wavelength | nm | 1260～1650 |
| Insertion Loss (Max.) | dB | 4.3 | 7.4 | 10.7 | 13.9 | 17.2 | 21.5 |
| Uniformity (Max.) | dB | 0.5 | 0.8 | 1.0 | 1.4 | 1.6 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 |
| Directivity | dB | ≥50 |
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
| Parameter | Unit | Specification (P Grade) |
| Channel Number | | 2X2 | 2X4 | 2X8 | 2X16 | 2X32 | 2X64 |
| Operation Wavelength | nm | 1260～1650 |
| Insertion Loss (Max.) | dB | 4.3 | 7.6 | 11.0 | 14.8 | 17.9 | 21.5 |
| Uniformity (Max.) | dB | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Polarization Dependent Loss | dB | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
| Return Loss | dB | ≥50 |
| Directivity | dB | ≥50 |
| Operating Temperature | ℃ | -40～+85 |
| Storage Temperature | ℃ | -40～+85 |
Note: All the data above does not include connectors.
Ordering Information
| PLC | | | | | | |
| | Port | Fiber Type | Input | Output | Pigtail Length | Connector |
|
PLC | 0102=1x2
0104=1x4
0108=1x8
0116=1x16
0132=1x32
0164=1x64
0204=2x4
0208=2x8
0216=2x16
0232=2x32
0264=2x64 | 1=G652D, 2=G657A | L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter | L=900µm Loose tube, S=2.0mm, R=3.0mm, 0=Adapter | 05-20=0.5--2.0m, 0=Adapter, X=Others | FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, 00=None, X=Others |
We can produce many serials of PLC splitters including:
1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X4, 2X8, 2X16, 2X32, 2X64 with following package
Bare fiber series
Mini loose tube package
ABS Module type
LGX box type
Rack Mount patch panel for PON application.
Wall Mount patch panel for PON application
Inline fiber optic splice closure type
Erect fiber optic splice closure type
