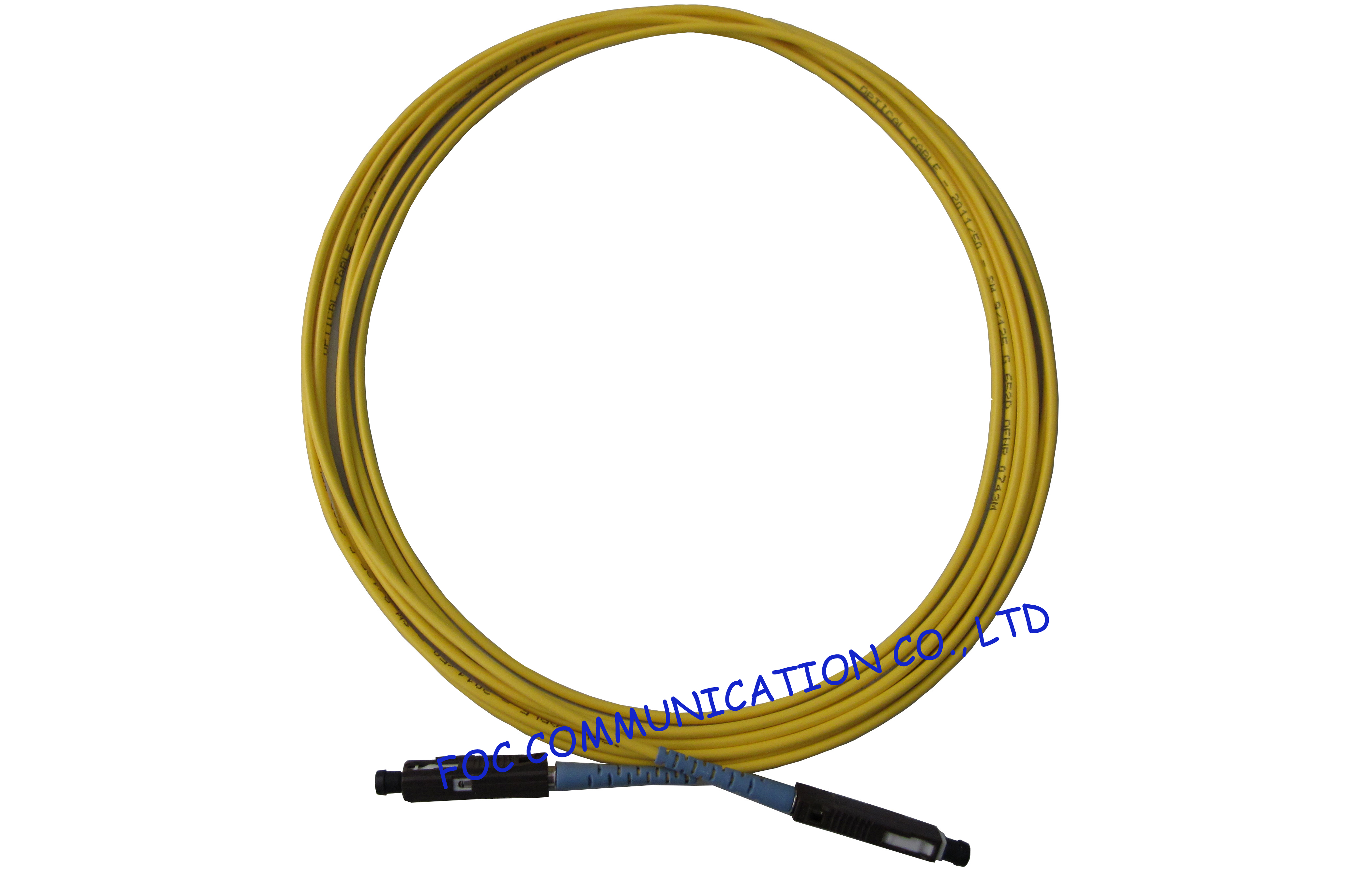

MU Fiber Optic Patch Cord For Fiber Optc Devices , Simplex patch cord 2.0mm

Name: MU Fiber Optic Patch Cord For Fiber Optc Devices Simplex patch cord 20mm
Brand: FOCABLE
Price: 1 USD

Brand Name : FOCABLE

Model Number : SC/APC-SC/APC SM Simplex Fiber Patch Cord

Certification : RoHS Compliant, SGS Certificate, ISO Certificate

Place of Origin : China

MOQ : 10PCS

Delivery Time : 3-5days

Packaging Details : 1PCS/PE Bag

Fiber Type : SM, OM1, OM2, OM3, OM4

Cable Material : PVC, LSZH, OFNP, OFNR, Hytrel

Cable Diameter : 0.9mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm

Connector : SC/APC, SC/UPC, FC/APC, FC/UPC, LC/APC, LC/UPC, ST, E2000, MU, MPO, MTRJ

Cores : Simplex, Duplex, 4cores, 6cores, 8cores, 12cores, 24cores, 48cores

Length : 1M, 2M, 3M, 5M or as per customer request

Contact Now

MU Fiber Optic Patch Cord For Fiber Optc Devices , Simplex Patch Cord 2.0mm

MU connectors are half the size of SC connectors with push-pull function. The connectors are made of plastic housings and 1.25mm zirconia ferrules. They are fully compatible with existing MU hardware.
In addition to basic testing, some mechanical and environmental tests per iec or telcordia are also performed periodically to guarantee the best quality for stand ard patch cords, sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.

Other than standard single mode and multimode fibers,G655, OM2 and OM3 fibers are also available upon request. Flame retardant grade cable sheathing options are offered. Riser rated cable will be Provided as standard LSZH and plenum can be provided upon request.

Features

Low insertion loss and high return loss

Telcordia, IEC, TIA/EIA standard compliant

RoHS compliant

100% optical performance inspection and end face geometric

Varieties of cable assemblies

Suitable for high-speed, high-capacity optical fiber transmission system

Good packing, competitive prices and very fast delivery

Applications

Telecom, datacom

Optical fiber communications system

Optical fiber access networks

CATV

Optical fiber test equipments

Local area networks

Specifications

Characteristic	SM, MM
Connector type	FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm)	0.9,2.0,3.0
Polishing grade	SM PC
Insertion loss	≤0.3dB
Return loss	≥40dB
Interchangeability	≤0.2dB
Repeatability	≤0.2dB
Operation temperature	-40°C~+85°C

MU Fiber Optic Patch Cord For Fiber Optc Devices , Simplex patch cord 2.0mm

Fiber Optic Patch Cord, Optical Fiber Patch Cord, Fiber Optic Assemblies, Fiber Jumpers
