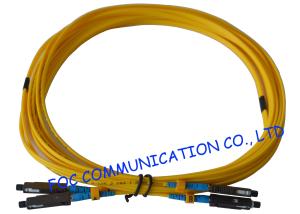

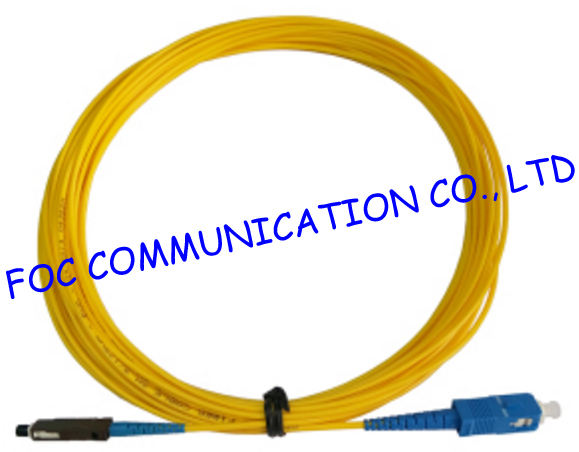

Yellow MU Fiber Optic Patch Cable G.657A Bend Insensitive Fiber LSZH Jacket
MU connectors are half the size of SC connectors with push-pull function. The connectors are made of plastic housings and 1.25mm zirconia ferrules. They are fully compatible with existing MU hardware.
In addition to basic testing, some mechanical and environmental tests per iec or telcordia are also performed periodically to guarantee the best quality for stand ard patch cords,sampling check is performed on ferrule geometry to ensure high percentage of polished connectors meeting GR-326 requirements. For premium grade, ferrule geometry is tested on all patch cords to meet these GR-326 requirements.
FOC COMMUNICATION CO., LTD offers a complete selection of MU-MU fiber optic patch cords, these fiber optic patch cords include single mode and multimode types, simplex, duplex and multi fiber versions. End face is available for PC, UPC or APC. Patch cord jacket material can be PVC or LSZH. All patch cords are RoHS compliant. We supply related standard and customized fiber optic patch cords with competitive price and prompt delivery.
AVAILABILITY
Simplex/Duplex patch-cord available
Fan-out available
Pigtail available
Various boot (cable) sizes available
FEATURES
Low insertion loss and back reflection loss
Good exchangeability
Good Durability
High temperature stability
Standard: Telcordia GR-326-CORE
SPECIFICATIONS
| | Single mode | Multimode |
| Insertion Loss | Typical <=0.2dB, Maximum<=0.3dB | ≤0.25dB |
| Return Loss | ≥50 dB (PC)
≥60 dB (APC) | |
| Repeatability | ≤0.1 | |
| Durability | ≤0.2 dB typical change, 1000 matings | |
| Interchangeability | ≤0.2dB | |
| Tensile strength | >70N | |
| Operating Temperature | -20 to + 70°C | -20 to + 70°C |
